Products

Wireless Detectors

Wireless passive infrared (PIR) motion detector PTX50

Multiple transmission technique for Alarming, Tamper alarm and Low battery warning are special features of Elmes wireless detectors.

  • Elmes GSM alarm notification module is designed to operate with Elmes CB32 (firmware v.2.10 and up) wireless control panel.
  • Can be used in any 900/1800/1900 MHz cellular telephone network depending on applied SIM card. The module communicates
  • Sends SMS messages and CLIP calls to up to two predefined cell phones it notifies alarm system owner or monitoring station operator of occurred intruder alarms, system failures and system arming and disarming.
  • The module uses embedded multi-band GSM network transceiver and is powered by cell phone 3,7V
  • lit-ion or polymer type battery charged by Elmes CB32 control panel.
  • The battery secures module power supply backup in case of control panel mains supply failure.
  • Simple installation procedures and practical notification features are advantages of the module for its application in alarm systems.
Technical Specification
  • 9V alkaline battery operation with ultra low power requirement (0,015mA at standby),
  • Dual infrared sensing element with programmable pulse count (1-2-3-5) and temperature compensation,
  • High quality multi-beam Fresnel lens with 90° detection angle coverage and protective sleeve.
  • Internal and external detection range adjustment.
  • Battery voltage monitoring and the detector sabotage protection tamper switch.
  • CE <5mW/433,92MHz transmitter with 20-50m operating range depending on location.
  • RF interference immunity better than 10V/m over 0,1 to 1 GHz range.
  • Indoor use with operating temperatures 0 to +40 deg. Celsius.

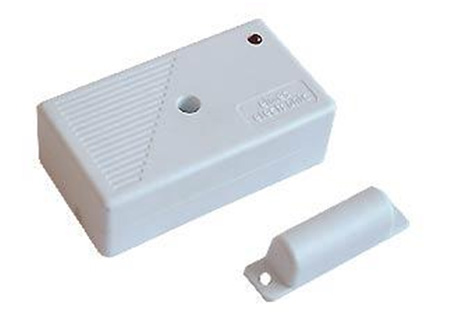

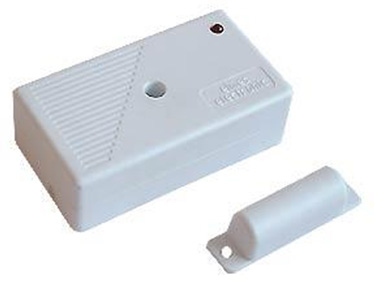

Wireless Magnet Detector - CTX3H

Technical Specification
  • Dynamic code system KEELOQ® of Microchip Corp. USA
  • Operating frequency: 433,92 MHz
  • Average range: 100m in open field
  • Power supply: alkaline battery 12V, type GP23A
  • Average battery life time: 2 years
  • Operating temperature range 0 to + 40°C,
  • External dimensions: (L/W/D) 19/58/32mm

Wireless Magnet Detector CTX4H

Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA
  • Operating frequency: 433,92 MHz
  • Periodic identification transmission
  • Average range: 100m in open field
  • Power supply: alkaline battery 9V
  • Average battery life time: 2 years
  • Operating temperature range 0 to + 40C,
  • External dimmensions: (L/W/D) 104/30/24mm

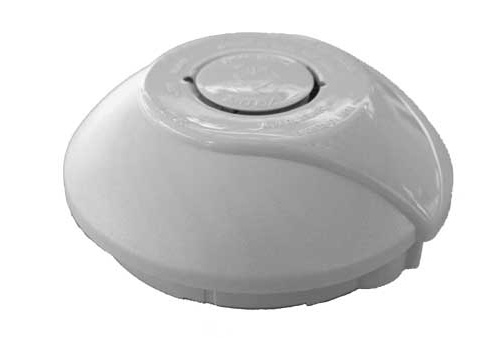

Wireless Photoelectric Smoke Detector – GNS

Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA
  • Operating frequency: 433,92 MHz
  • Detects visible smokes
  • Built in siren 85dB
  • Wireless communication with Elmes CB32, CH8HR, CH20HR
  • Power supply: alkaline battery 9V DC

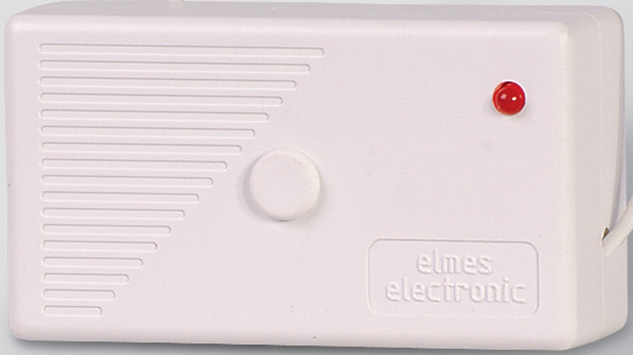

Micro Processor Controlled Radio Signal Repeater - TRX

Technical Specification
  • Dynamic code system KEELOQ® of Microchip Corp. USA
  • Operating frequency: 433,92 MHz
  • Average range: 200m in open field
  • Power supply required: 12VDC
  • compatible with all Elmes keyfobs, transmitters and wireless detectors
  • Operating temperature range 0 to + 40°C,
  • External dimensions: (L/W/D) 19/58/32mm

Miniature Universal 2 Channel Transmitter – MTX

Technical Specification
  • EU Complaint 433,92 MHZ transmitters.
  • Power Supply by 9 Volt Alkaline or 12 Volt DC.
  • Operating Temperature -20 to 40 Degree Celsius.
  • External Dimensions ( L/W) 31/22mm
